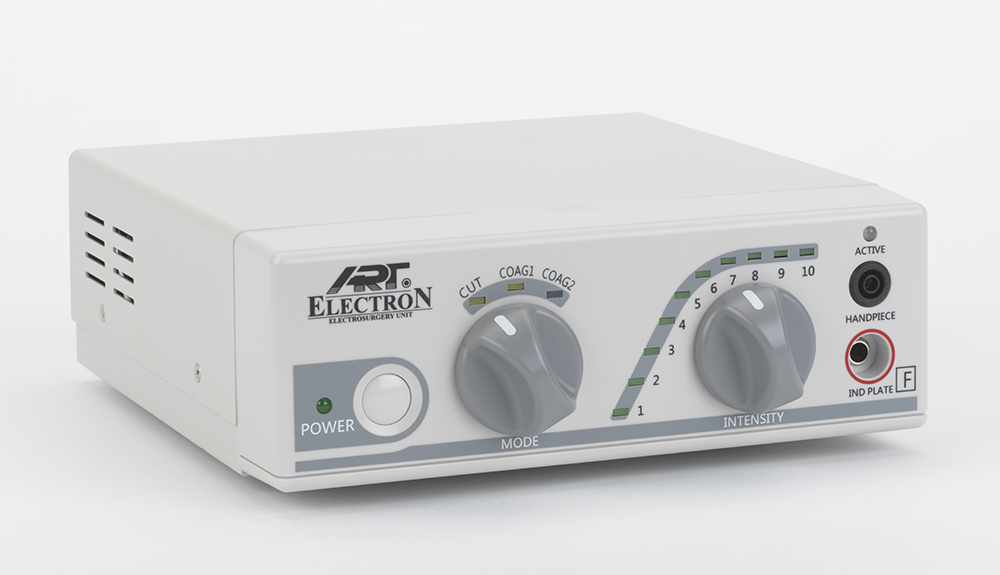

BonArt Art-E1 Electron Electrosurgery Unit

For dentists, oral surgeons and veterinarians alike, electrosurgery units have become a staple in the operatory for their fast cutting, ease of use, and track record of safe implementation. For minor incisions, excisions and drainings, The Electron™ from Bonart™ stands amongst its peers as one of the most widely-used electrosurgical devices in the Western world.

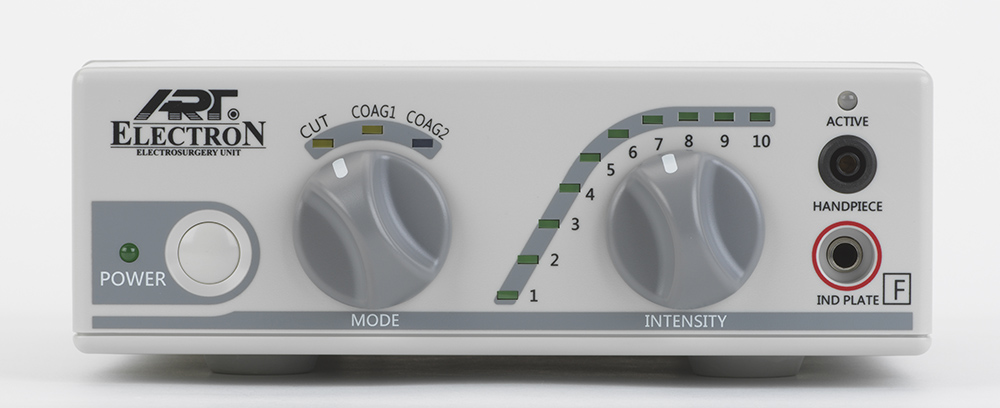

Utilizing monopolar radio waves – not heat – to cut tissue, The Electron™ eliminates the tissue scarring of the old cautery machines, and puts exacting precision at your fingers.From the crystal clear LED readout highlighting each of the 10 power levels and 3 modes (Cut, Coag1 and Coag2), down to the Tungsten electrode set and hand piece, The Electron™ from Bonart™ is a technical marvel at a fraction of the price of it’s competitors.

The grounding plate (included) is required for operation.

ISO and CE Certified
510k registered

Device Name: Electron
Model number: ART-E1

Part Numbers:
110V Model Part Number: E1-1-ART-A1-70-0
220V Model Part Number: E1-2-ART-v-A1-70-0

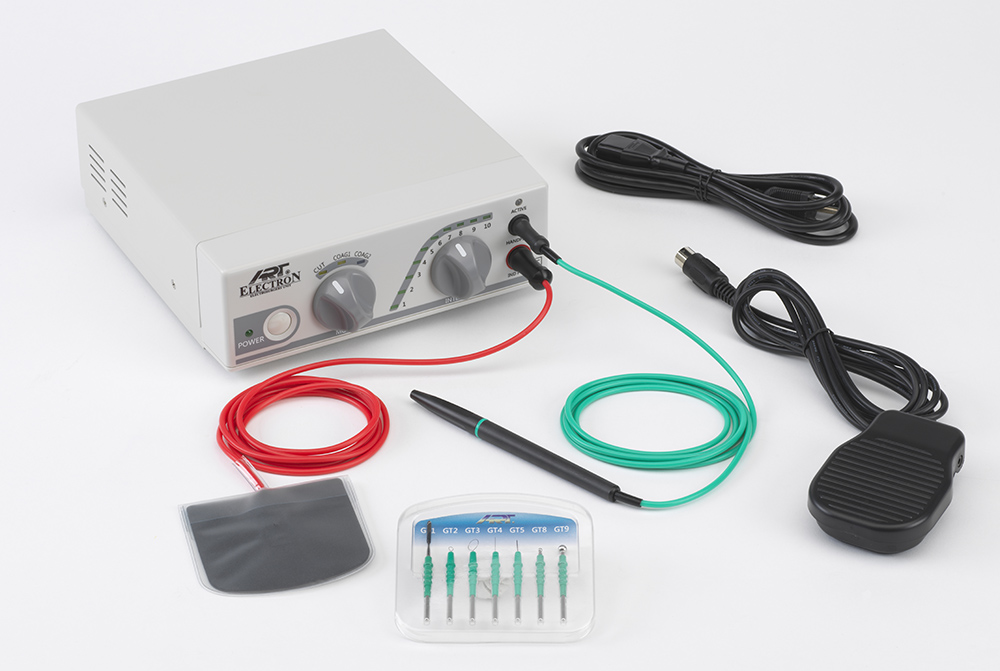

Included Parts & Accessories:
Electron (ART E1) Main Unit
Power Cord
PP0031-002: Universal foot switch

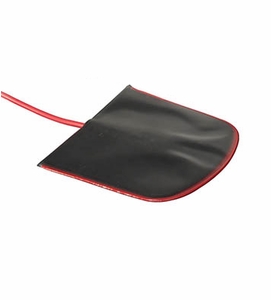

EU0004-002: Indifference/ Grounding plate

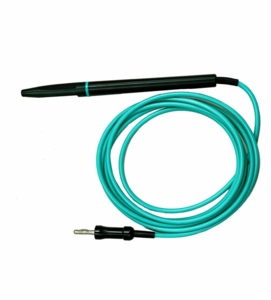

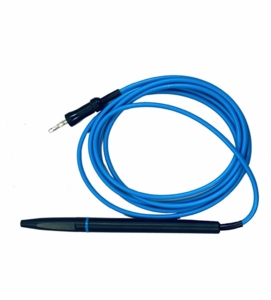

EU0016-052: E1 blue handpiece

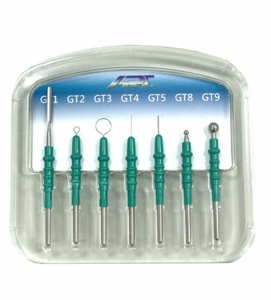

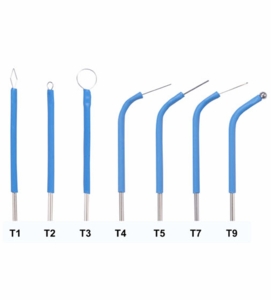

TE0002-002: Assorted electrode set of 7 (includes the following electrodes):
TE0001-012: T1 Diamond shaped electrode
TE0001-022: T2 Small loop electrode
TE0001-032: T3 Large loop electrode
TE0001-042: T4 Fine wire electrode
TE0001-052: T5 Heavy wire electrode
TE0001-072: T7 Oval loop electrode
TE0001-092: T9 Heavy ball electrode

Other Parts:
EU0013-002: Bipolar converter (not included). The bipolar converter does not convert the system to operate in bipolar mode. It merely allows bipolar prongs and hand pieces to be used with the ART-E1

Specifications:
Maximum power output: 50W (@ 400 ohm load)

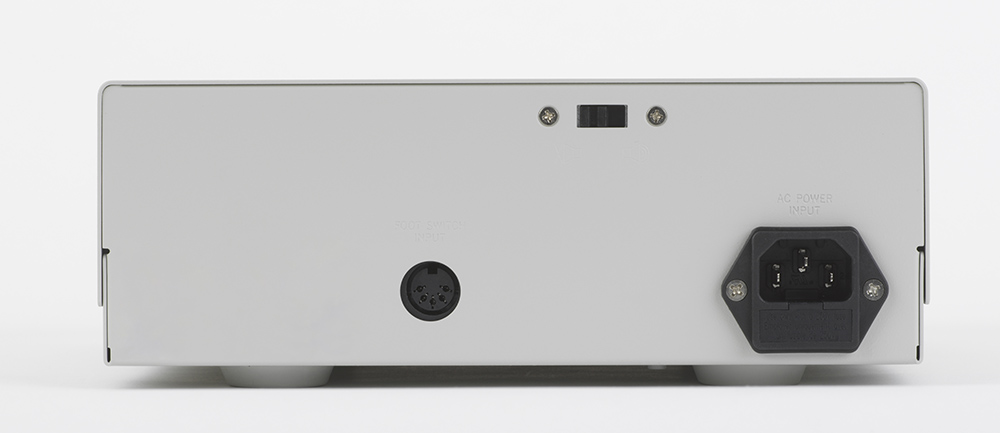

Power supply: 110V±5% ~50/60Hz 92VA or 220V±5% ~50/60Hz 92VA
Work frequency: 1.5~1.7MHz±5%
Dimension (cm): 23(L) x 22.5(W) x 8.5(H)
Hand piece cable length: 190 cm
Indifference plate cable length: 190 cm
Weight: 12lbs
