7000 Series Implant Motor w/ LED (Max 80 Ncm) – Precision, Power, and Visibility Without Compromise

The 7000 Series Implant Motor with LED (AEU-7000L-70V) represents the pinnacle of implant motor technology. Designed for clinicians who demand maximum torque, uncompromising accuracy, and enhanced visibility, this system delivers industry-leading performance across implant, oral surgery, and endodontic applications.

As the only American-made implant motor on the market, the 7000 Series with LED is the result of over 30 years of motor manufacturing expertise—backed by Aseptico’s worldwide reputation for reliability, durability, and clinical excellence.

Integrated LED Technology for Superior Surgical Visibility

The built-in LED capability delivers bright, shadow-free illumination directly at the treatment site, improving visibility, accuracy, and confidence during implant placement and surgical procedures. This enhanced visualization supports precise execution even in challenging clinical conditions.

Industry-Leading Torque and Multi-Disciplinary Versatility

Engineered for demanding procedures, the 7000 Series Implant Motor with LED offers a wide torque range to support multiple clinical disciplines:

• Up to 80 Ncm in Implant Mode for maximum stability during implant placement
• Up to 4.95 Ncm for oral surgery applications, including third molar extractions
• Up to 1,000 g-cm in Endodontic Mode for precise canal preparation

This versatility makes the system ideal for traditional and mini implants, surgical procedures, and advanced endodontic workflows.

Unmatched Accuracy with Dynamometer Calibration

The integrated dynamometer calibration system ensures exceptional torque accuracy by compensating for handpiece variations. This guarantees predictable performance, improved implant success rates, and consistent clinical outcomes—procedure after procedure.

Customizable Presets for Any Implant System

With six programmable preset buttons, clinicians can fully personalize speed, torque, irrigation flow, and rotation settings. This allows seamless compatibility with virtually any implant system while significantly reducing setup time and improving efficiency.

Advanced Safety Controls for Implant and Endodontic Procedures

The 7000 Series with LED enhances procedural safety with intelligent control features:

• Selectable Auto-Stop in Implant Mode when preset torque is reached
• Auto-Stop-Reverse in Endodontic Mode to reduce file separation risk

These safeguards provide greater confidence and control during critical stages of treatment.

Universal Handpiece Compatibility with Intelligent Recognition

Designed for maximum flexibility, the system is compatible with a wide range of E-type handpieces, including:

• 1:8 endodontic handpieces
• 20:1 implant handpieces
• 1:1 and 1:2 surgical handpieces
• 1:5 high-speed handpieces

Automatic handpiece ratio adjustment ensures accurate torque delivery without manual recalibration.

High-Performance Autoclavable Micromotor and Intuitive Control

At the heart of the system is a 40,000 RPM autoclavable brushless micromotor, designed for smooth operation, durability, and optimal infection control. The intuitive interface allows real-time adjustment of handpiece ratio, speed, torque, and irrigation flow.

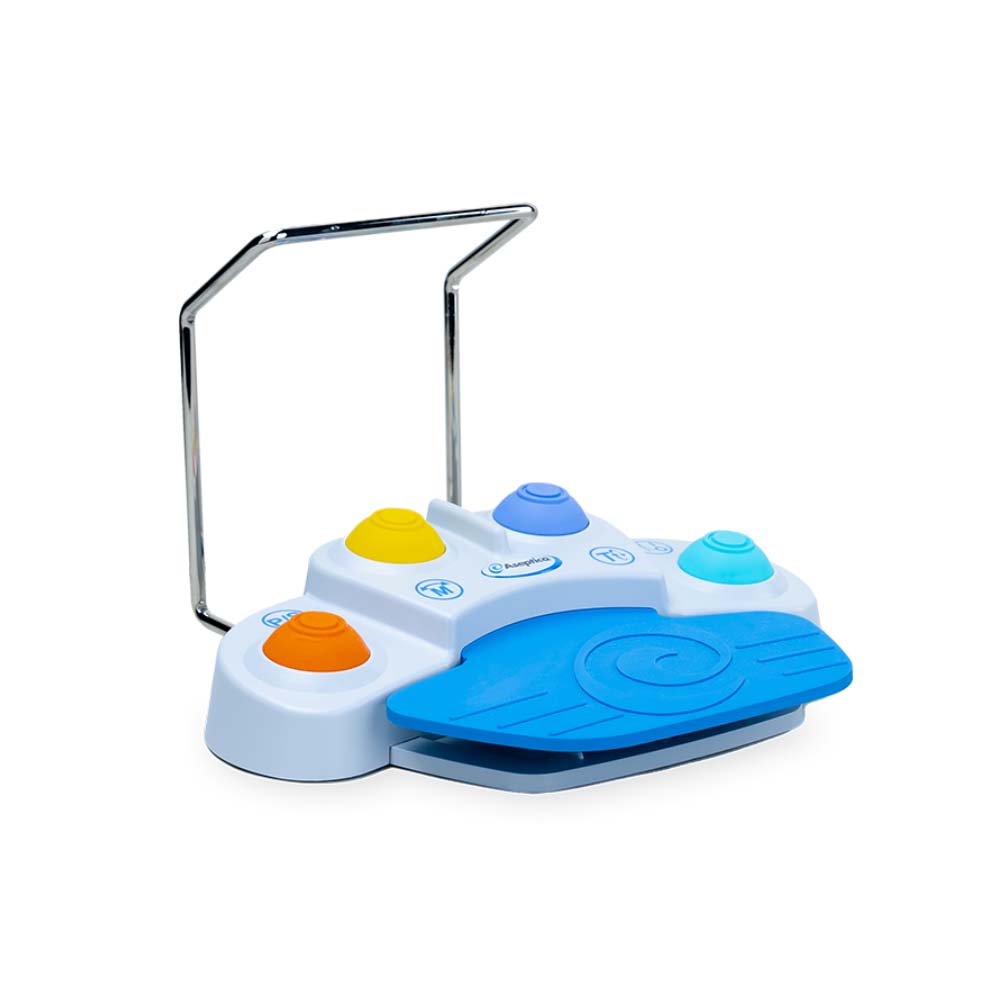

A multifunction foot control provides hands-free operation of pump on/off, flow rate, micromotor direction, preset selection, and torque—keeping clinicians focused on the procedure.

Future-Ready Design with Global Compatibility

Built for longevity and worldwide use, the 7000 Series Implant Motor with LED includes:

• Upgradeable software to keep the system current for years
• Easy-load irrigation pump for faster setup and workflow efficiency
• Auto-sensing dual voltage for global operatory environments
• FDA, NRTL, and CE compliance

Compact Console with Complete Clinical Solution

• Console Dimensions: 9.98" x 9.42" x 5.1" (25.3 x 23.9 x 12.9 cm)
• Console Weight: 7.3 lbs (3.3 kg)

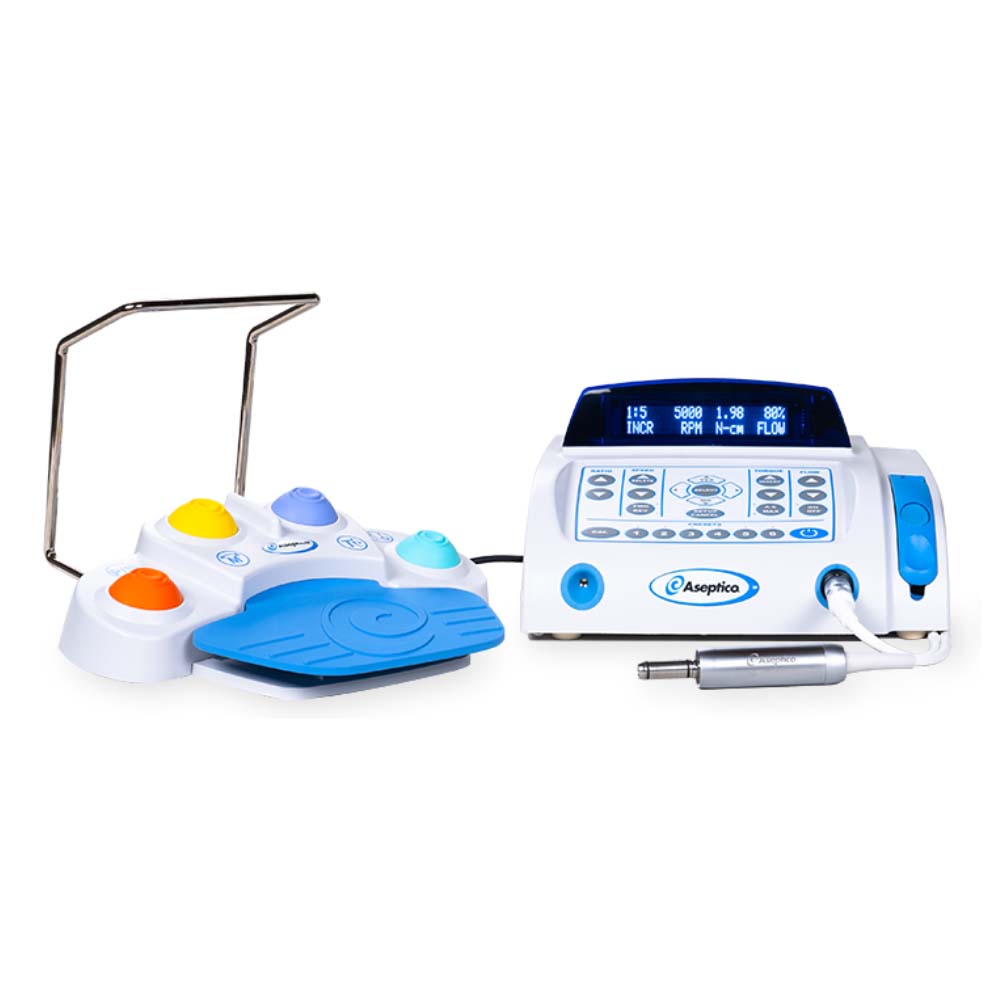

What’s Included with the 7000 Series Implant Motor w/ LED

• Electronic Control Console (120330)
• Optional 20:1 Mont Blanc Implant Handpiece
• Autoclavable 40,000 RPM Brushless Micromotor & Cable (AE-230M-40)
• Autoclavable Micromotor & Fiber Optic Cable (AE-230L-40) for LED illumination
• Autoclavable Motor Holder & Attaching Bracket
• Multi-Function Foot Pedal (AE-70V2)
• Dynamometer Adapter
• Autoclavable Irrigation Tubing Set
• Peristaltic Pump Tubing Set
• Irrigation Bag Hanger Rod
• Cannula Clip Set with Y-Connector
• Handpiece Cradle

Why Choose the 7000 Series Implant Motor w/ LED?

The 7000 Series Implant Motor with LED is the ultimate choice for clinicians who demand maximum torque, precise calibration, superior visibility, and total procedural versatility. As the only American-made implant motor with integrated LED capability, it delivers unmatched confidence, reliability, and long-term value—making it an essential investment for implant-focused practices.

See more. Control more. Achieve more—with the 7000 Series Implant Motor w/ LED.
